人工智能+
数字液压缸
AI+
Digital Hydraulic Cylinders

具有脉冲当量,人工智能大模型可直接调用,微米级精度,核、深海、强磁、超高低温等极强耐受,航天级免维护稳定可靠,为装备制造业数字化和智能机器人化创新高质量发展带来保障和机遇。 Digital hydraulics have pulse equivalent (enabling direct calling by AI LLM), micron-level precision, strong resistance to extreme conditions (nuclear environments, deep sea, strong magnetic fields, ultra-high/low temperatures), and space-grade maintenance-free stability/reliability—all providing guarantees and opportunities for the innovative, high-quality development of digitalization and intelligent robotization in the equipment manufacturing industry.

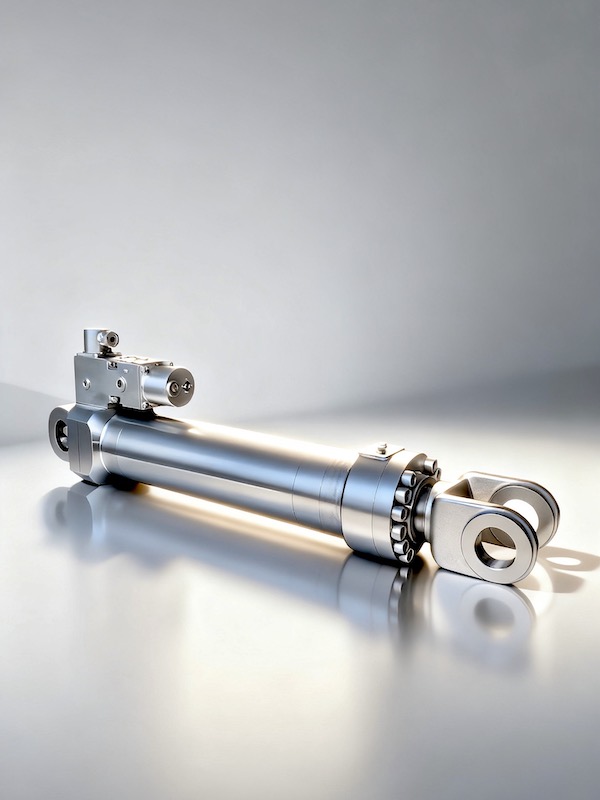

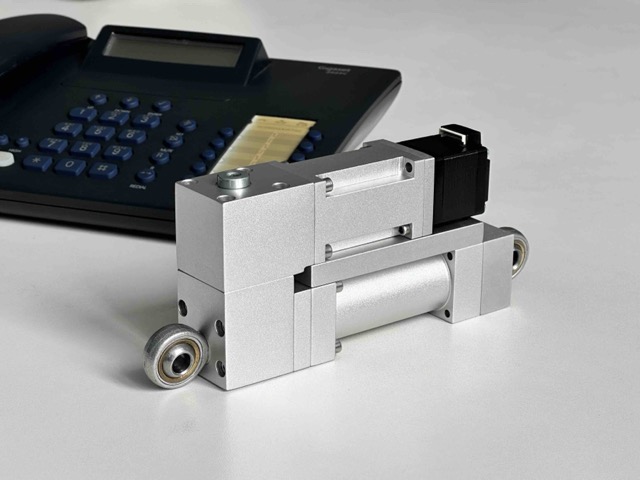

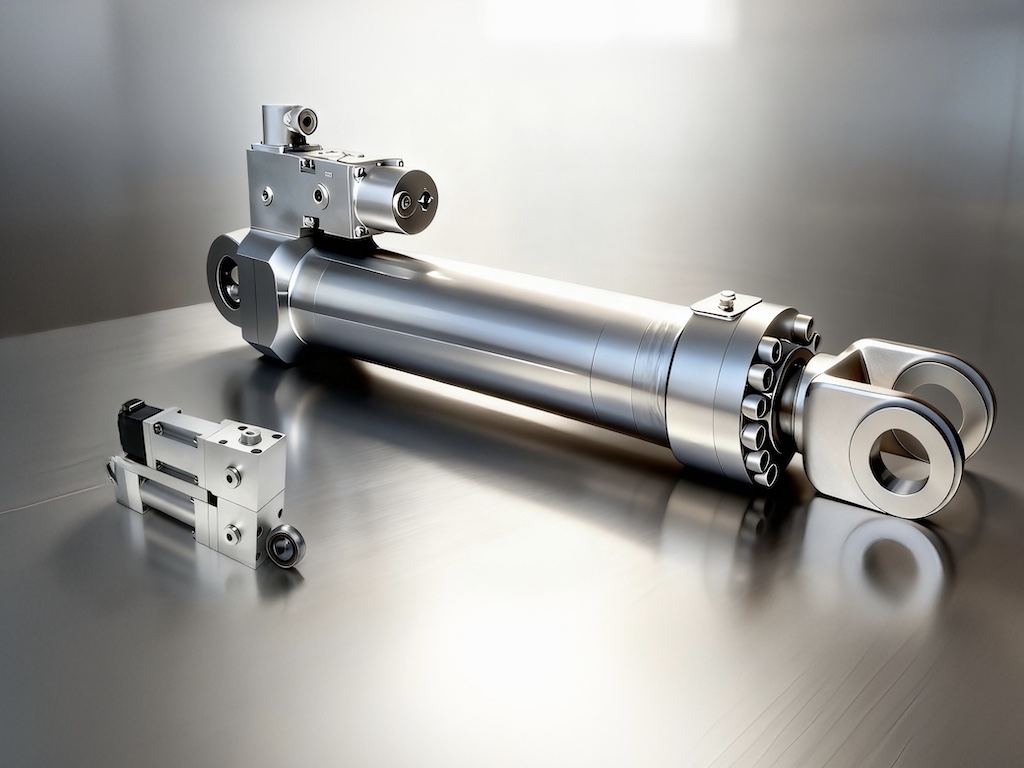

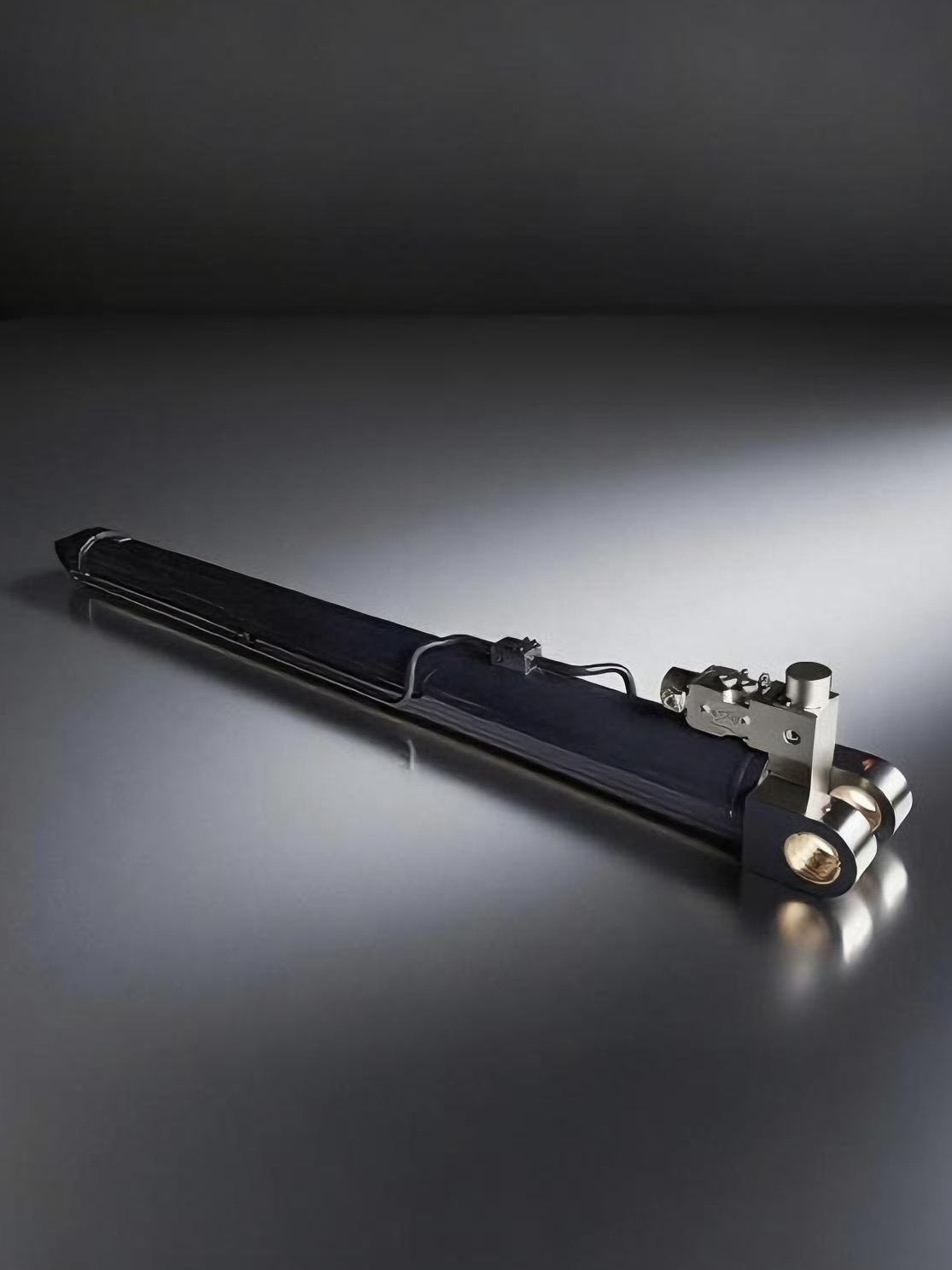

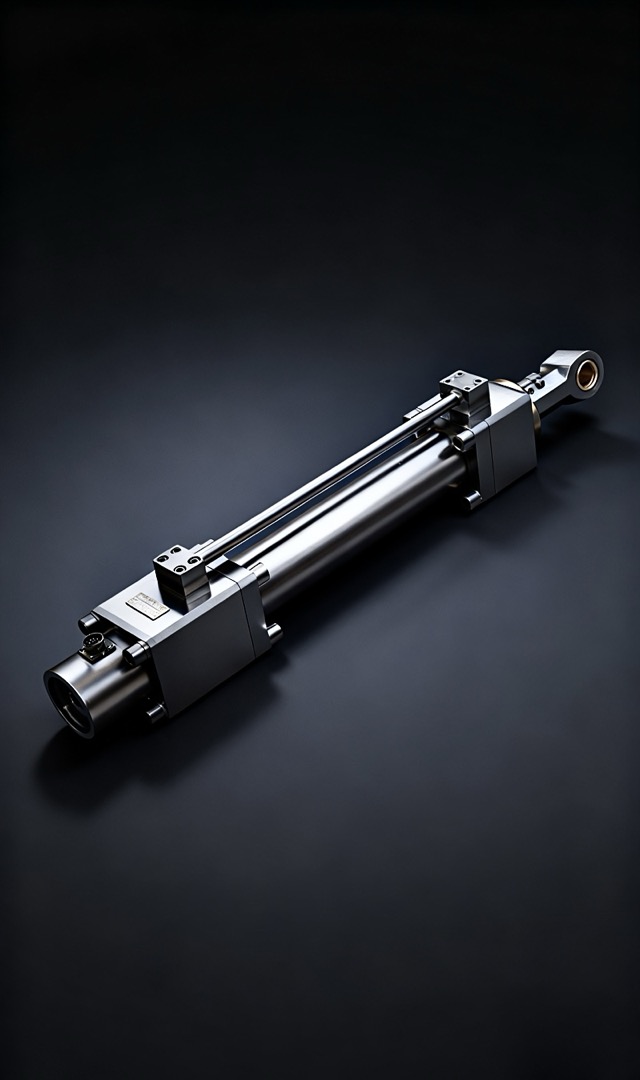

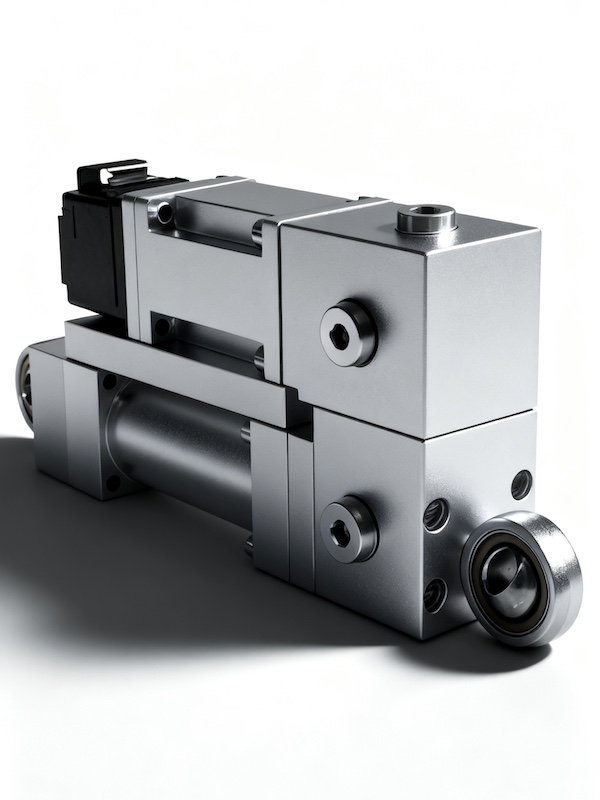

小型和中型数字液压缸产品图
重复误差±0.001毫米 核、深海、超高低温 Repeat error ±0.001mm Nuclear, deep sea, extreme temp
🏆

国家政策支持和鼓励 National Policy Support and Encouragement

数字液压技术获得多项国家认可与支持 Digital hydraulic technology has received multiple national recognitions and support

🏆

国家工业强基 National Industrial Foundation Enhancement

🏆

国家战略基础产品 National Strategic Basic Products

🏆

国家科技攻关 National Science and Technology Research

🏆

国家重点新产品 National Key New Products

🏆

首台套重大技术装备 First Set of Major Technical Equipment

🏆

双行业重点发展技术 Key Development Technology in Dual Industries

特性概述 Features

亿美博数字液压缸具有"脉冲当量"特性,是模拟伺服液压技术的升级,它让超大功率液压像电机一样使用,为装备智能机器人化提供高效、精准的动力输出解决方案。 AEMETEC's digital hydraulic cylinder features the "pulse equivalent" characteristic. It is an upgrade of analog servo hydraulic technology, enabling ultra-high-power hydraulics to be used like electric motors and providing efficient and precise power output solutions for robotic systems.

数字集成设计 Digital Integrated Design

将流体传动、自动化控制、计算机、传感、机械、电气融合,并具有脉冲当量数字化特性。 Integrates fluid transmission, automation, computing, sensing, mechanics and electrical engineering, and features digital pulse equivalent.

免(少)维护特性 Low/No Maintenance

基于第一性原理设计,极致简化,减少维护需求,降低运营成本,提高设备利用率。 Designed based on first principles, it features extreme simplification, reduced maintenance needs, lower operational costs, and higher equipment utilization.

网络与人工智能+ Network and AI+

人工智能大模型可直接调用控制,支持多种通信协议,0(少)代码编程应用。 Controllable directly by AI LLM, supports multiple communication protocols, enabling quick integration into robotic platforms.

人人都会用 Everyone can use it

每个人都能轻松掌握和应用的脉冲当量特性,让精密液压传动无需专业知识。 The pulse equivalent feature that everyone can easily master and apply eliminates the need for professional knowledge in precision hydraulic transmission.

微米级定位精度 Micron-level Positioning Accuracy

具有脉冲当量特性的内建反馈系统,实现±0.001mm的重复定位精度,满足精密与大力量操作需求。 Built-in feedback system with pulse equivalent characteristics, achieving ±0.001mm repeat positioning accuracy, meeting precision and high-force operation requirements.

高速响应性能 High-speed Response

优化的液压设计与内建闭环反馈,使系统响应时间在毫秒级,适合超高动态控制场景。 Optimized hydraulic design with built-in closed-loop feedback, achieving millisecond-level system response time, suitable for ultra-high dynamic control scenarios.

强环境耐受 Strong Environmental Resistance

满足核、深海、极寒、高温、高磁等极端环境下,大功率、高精度、高可靠需求。 Meets high-power, high-precision, and high-reliability requirements in extreme environments such as nuclear, deep-sea, extreme cold, high temperature, and high magnetic fields.

网络与人工智能+ AI+ and Networking

支持AI MCP和EtherCat、CanOPEN等,人工智能大模型可直接调用,支持主流现场总线。 Supports AI MCP, EtherCat, CanOPEN, etc. Can be directly controlled by AI LLM and supports mainstream fieldbuses.

技术参数 Technical Specifications

亿美博科技数字液压缸融合了精密机械设计与先进数字控制技术, 为机器人系统提供高效、精准的超大动力输出解决方案。我们让机器人有力量、装备有智慧。 AEMETEC's digital hydraulic cylinders integrate precision mechanical design with advanced digital control technology, providing efficient and precise high-power output solutions for robotic systems. We empower robots with strength.

参数项 Parameter 小微型 Mini/Small Specification 中型 Standard Specification 大型 Large Specifications
缸径范围 Bore Diameter Range 16 - 50mm 16 - 50mm 50 - 300mm 300 - 1000mm
行程范围 Stroke Range 0 - 200mm
0 - 500mm
0 - 200mm
0 - 500mm
0 - 500mm
0 - 5000mm
0 - 3000mm
0 - 10000mm
工作压力 Working Pressure 8 - 35MPa 8 - 35MPa 35 MPa 35 - 60 MPa
最大推力 Maximum Thrust 65 kN 65 kN 2400 kN 45000 kN
重复精度 Repeat Accuracy ±0.001mm
±0.01mm
±0.1mm
±0.001mm
±0.01mm
±0.1mm
±0.001mm
±0.01mm
±0.1mm
±0.001mm
±0.01mm
±0.1mm
速度范围 Speed Range 0.005 - 50 mm/s
0.05 - 500 mm/s
0.1 - 1000 mm/s
0.005 - 50 mm/s
0.05 - 500 mm/s
0.1 - 1000 mm/s
0.005 - 50 mm/s
0.05 - 500 mm/s
0.1 - 1000 mm/s
0.005 - 50 mm/s
0.05 - 500 mm/s
0.1 - 1000 mm/s
温度范围 Temperature Range -40°C - +80°C -40°C - +80°C -40°C - +80°C -40°C - +300°C
通信接口 Communication Interface EtherCAT, CANopen, Modbus RTU, AI MCP EtherCAT, CANopen, Modbus RTU, AI MCP EtherCAT, CANopen, Modbus RTU, AI MCP EtherCAT, CANopen, Modbus RTU, AI MCP
防护等级 Protection Class IP69K (可选核耐受) IP69K (nuclear optional) IP69K (可选核耐受) IP69K (nuclear optional) IP69K (可选核耐受) IP69K (nuclear optional)
规格型号:DHC-缸径/杆径*行程-精度-速度 Specification Model: DHC-bore/rod*stroke-precision-speed
45+

行业经验

Industry Experience

200+

专利和软著

Patents and Copyrights

500+

全球客户

Global Clients

30+

应用行业

Application Industries

应用场景 Applications

亿美博科技数字液压缸凭借其高精度、高功率密度的特点,广泛应用于多个工业领域。 With their high precision and high power density, AEMETEC's digital hydraulic cylinders are widely used in various industrial fields.

国防军事

国防军工 National Defense

为军用装备提供高精度、高可靠、强环境耐受、免维护的动力控制解决方案,满足网络化智能化作战需要。 Provide high-precision, high-reliability, strong environment-resistant, and maintenance-free power control solutions for military equipment to meet the needs of networked and intelligent operations.

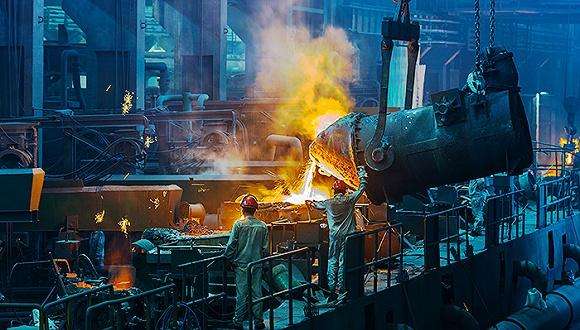

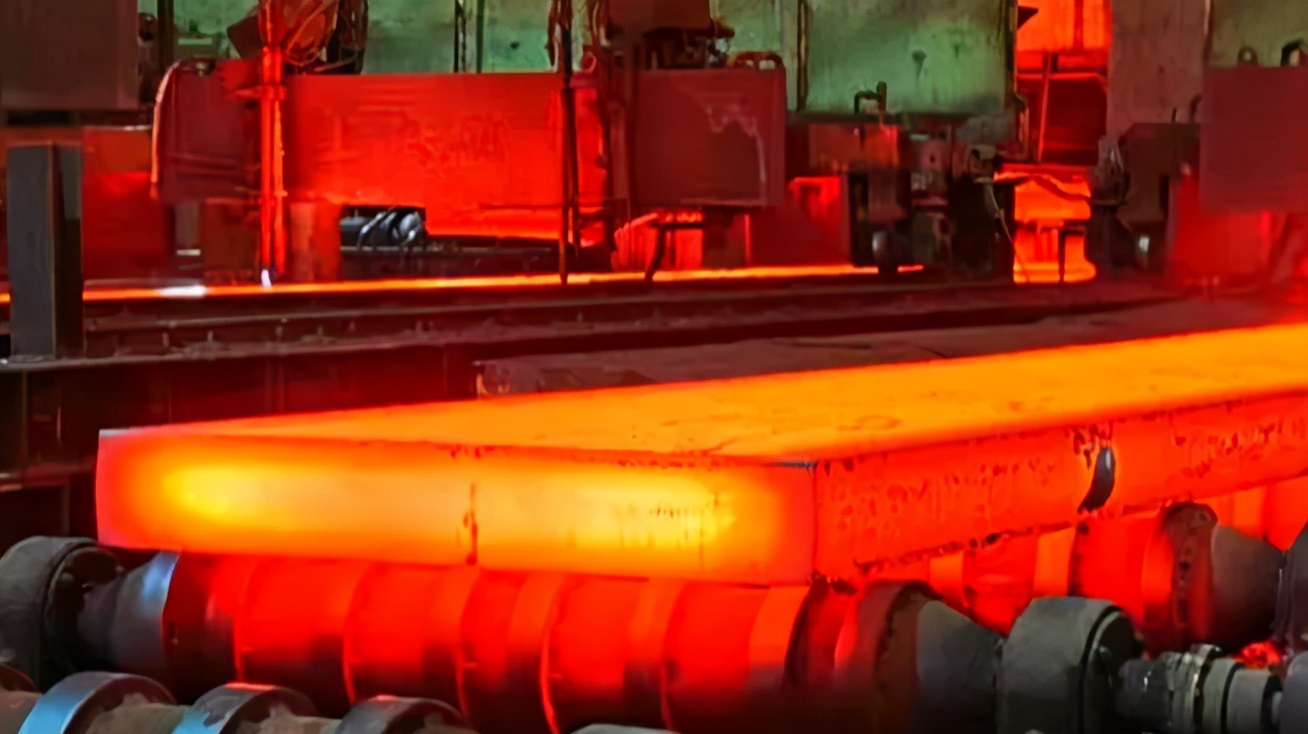

冶金装备

冶金装备 Metallurgical Equipment

在冶金设备中实现精确控制,提高生产效率和产品质量,降低能耗,减少维护。 Achieve precise control in metallurgical equipment to improve production efficiency and product quality, reduce energy consumption, and minimize maintenance requirements.

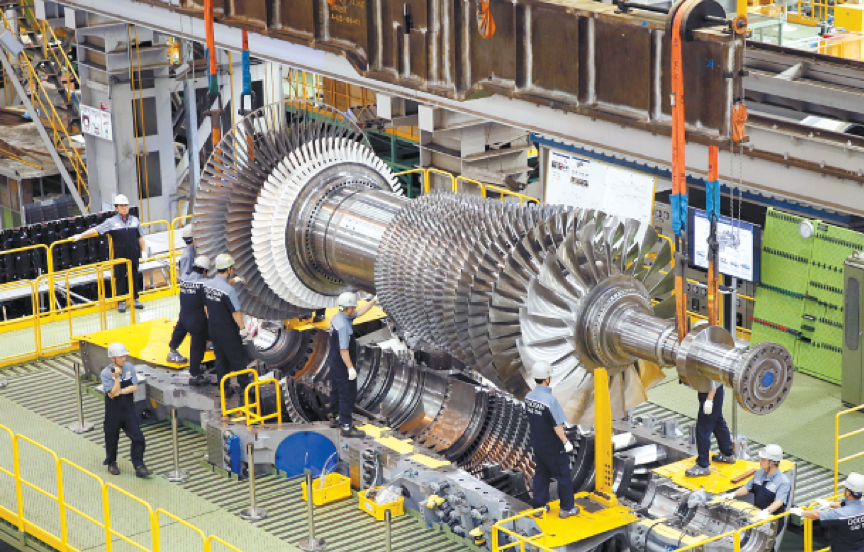

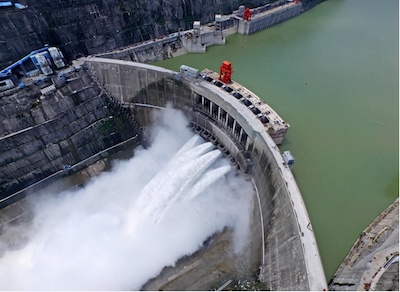

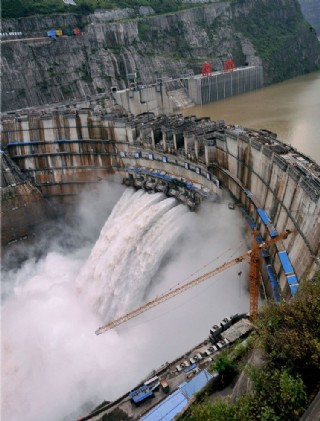

能源与发电

能源与发电 Energy and Power Generation

用于核、水利、风力、火力、太阳能发电设备的精确控制和调节,提高发电效率,减少维护,保障设备安全稳定运行。 It is applied for the precise control and regulation of nuclear, hydropower, wind, thermal, and solar power generation equipment. This ensures enhanced power generation efficiency, reduced maintenance needs, and guarantees the safe and stable operation of the equipment.

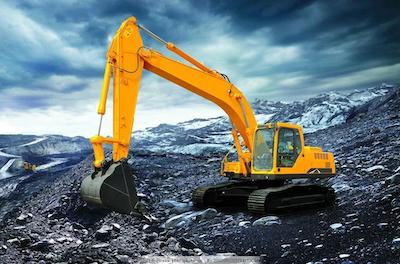

建筑机械

建筑机械 Construction Machinery

数字液压、数液流量匹配功率控制与机器人控制系统结合,将建筑机械升级为智能机器人,满足高温高寒极端环境无人化施工需要。 The integration of digital hydraulics, digital-hydraulic flow-matched power control, and robotic control systems upgrades construction machinery into intelligent robots, meeting the needs of unmanned construction in extreme high-temperature and low-temperature environments.

通用机械应用

通用机械 General Machinery

适用于大型机械设备精密控制,提高自动化水平和生产效率,减少维护成本。 It is suitable for the precise control of large-scale mechanical equipment, improving the level of automation and production efficiency, and reducing maintenance costs.

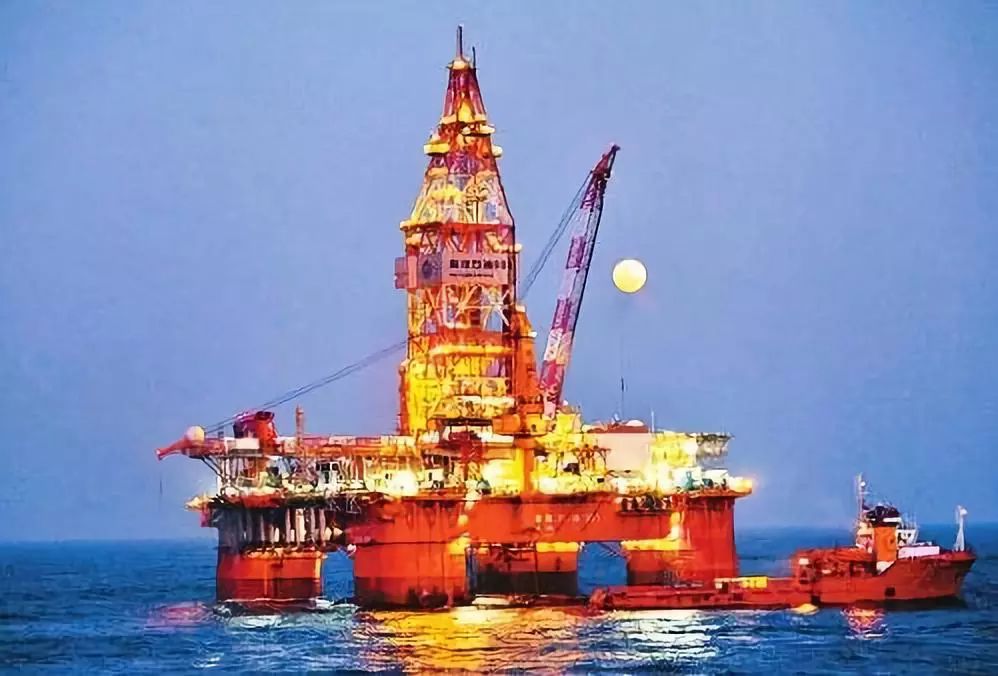

海洋装备应用

海洋装备 Marine Equipment

为海洋探测和开发装备提供精准可靠的液压动力,适应深海高压和低温环境。 Provide precise and reliable hydraulic power for marine exploration and development equipment to adapt to the high-pressure and low-temperature environment of the deep sea.
